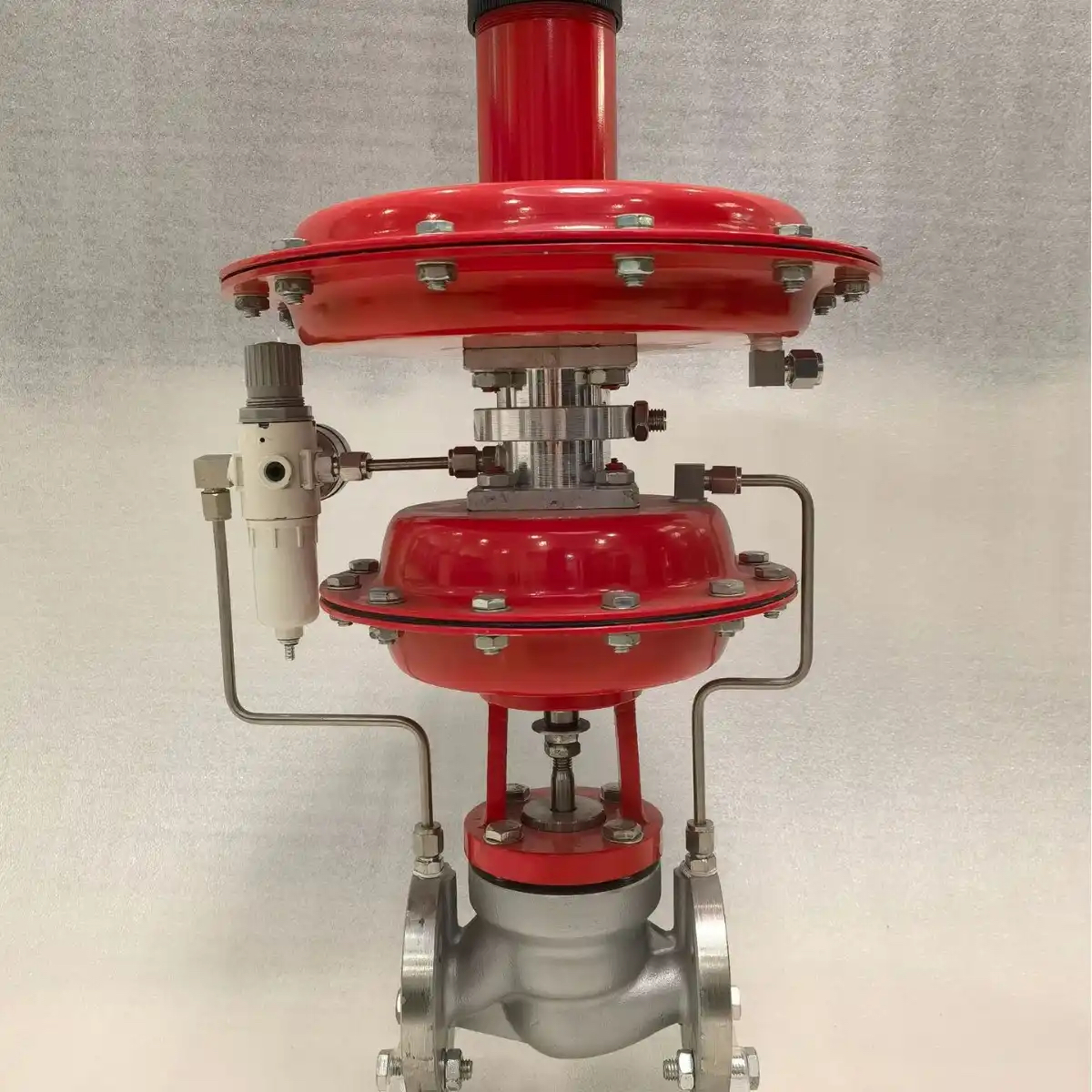

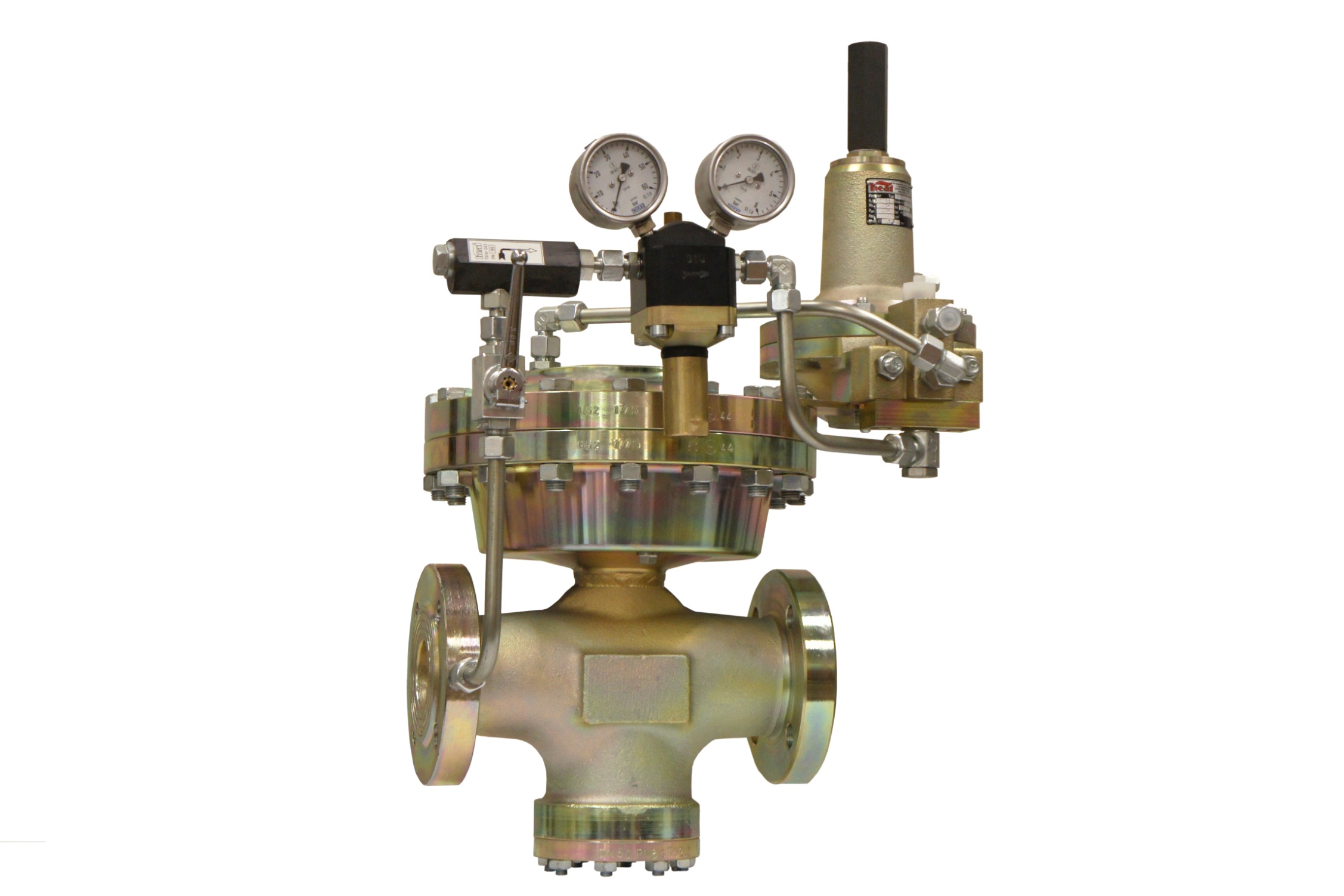

Pilot Operating Pressure Regulator
Date：2025-11-21 22:39:15
Clicks：
Editor：未知
Pilot Operating Pressure Regulator
Standard:
EN334, EN88, ISO23555, ANSI B109.5, UL144, ISO15500-9, etc.
Corrosion Standard:
NACE MR 0175, ISO-1516.
Body Material:
ASTM A216 WCB, Spheroidal Graphitic Cast Iron, Alloy, etc.
Inlet Nozzle Range:
1/2" To 8".
Inlet Nozzle Type:
NPT-F, NPT-M, Flange RF, Flange RTJ.
Angle between Inlet & Outlet:
90Deg or 180Deg.
Outlet Nozzle Range:
1/2" To 8".
Outlet Nozzle Type:
NPT-F, NPT-M, Flange RF, Flange RTJ.
Design Pressure:
< Class 150, 300, 600, 900
Max. Inlet Pressure:
1750 psig.
Max. Outlet Pressure:
1000 psig.
Working Temperature:
-55F to 350F.
Medium:
Natural gas, Air, etc.
Max. Capacity:
200,000 SCFH.
Noise:
<80dB.
Corrosion Allowance:
As per customer' requirement.
Painting:
Anti-rust paint, or as per Customer's requirement.
Inspection & Test:
MT, UT, RT, PT, Dimension inspection, Pneumatic test, etc.
Packing:
Strong & standard export packing or Customer's requirement.
